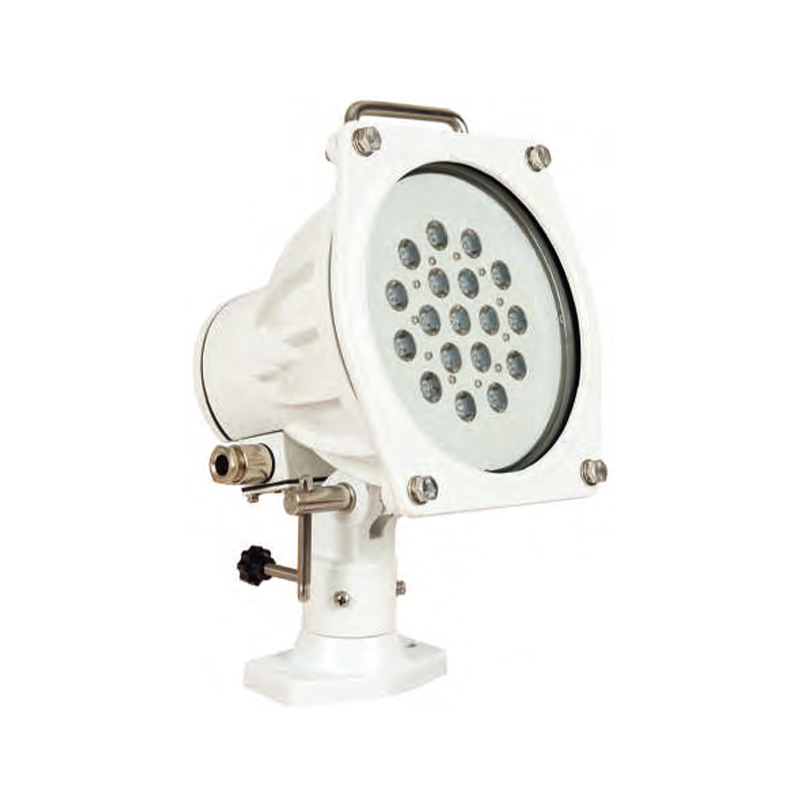

TG15-N LED Low Voltage Spotlight
● Applied to illumination in outdoor places such as ships, dock ports, store places and stadium and etc.
● Illuminant: LED. Energy saving and long life.
● AC100-240V DC12-24V, 30W.
● Adjustment Method: Manual Regulation.
● Lamp Body Material: High-Quality Marine Aluminium Alloy.
● Protection Class: IP66.
● Ambient Temperature: -30℃~+55℃.
Tell us your requirements via Enquiry form, Email, WhatsApp
Share to
Specifications of TG15-N LED Low Voltage Spotlight
| Type | TG15-N |
| Rated Voltage | AC100-240V DC12-24V |
| Power | 30W |
| Power Factor | ≥0.9 |
| Illuminant | LED |
| Illuminant Color | White |
| Luminous Flux (lm) | 30001m |
| Color Rendering Index | ≥70 |
| Color Temperature | 5700K |
| Adjustment Method | Manual regulation |
| Horizontal Angle | 360° |
| Vertical Angle | Elevation angle 60°,Depression angle 60° |
| Protection Class | IP66 |
| Cable Outside Diameter | 10mm~12mm |
| Installation Method | Seat-mounted Type |
| Ambient Temperature | -30℃~+55℃ |
| Lamp Body Material | High quality marine aluminium alloy |
| Lamp Shade Material | Toughened glass |
| Weight | 5.3kg |
Advantages of TG15-N LED Low Voltage Spotlight
The TG15-N LED low-voltage spotlight supplied by Yushuo, offers several key advantages that make it a superior lighting solution for various applications.
- Energy Efficiency: The TG15-N LED spotlight consumes significantly less power compared to traditional lighting, offering substantial energy savings, especially in low-voltage applications.
- Long Lifespan: Equipped with LED technology, this spotlight offers an extended operational life, reducing maintenance costs and the frequency of replacements.
- Low Voltage Operation: Designed to work with low voltage power sources, the TG15-N is ideal for environments where power constraints exist, providing safe and reliable lighting without sacrificing performance.
- Durability: Built with robust materials, the marine LED spotlight is resistant to harsh environmental conditions, making it suitable for outdoor use or in areas exposed to moisture, dust, or temperature fluctuations.
- High Luminous Efficiency: The LED spotlight delivers bright, focused illumination while maintaining optimal efficiency, ensuring high-quality lighting output for a variety of applications.
- Compact Design: Its sleek, compact form allows for easy installation in tight spaces, offering flexibility in positioning and minimal impact on aesthetics.
- Eco-Friendly: With no harmful substances like mercury and minimal heat emission, the TG15-N LED spotlight is an environmentally conscious lighting solution.
