HJCL16 LED Marine Pendant Light
- Protection Class: IP66.
- Illuminant: LED.
- Ambient Temperature: -30℃~+55℃.
- Electricity Requirements: AC100～240V 50/60Hz, 24W, DC24V 3W.

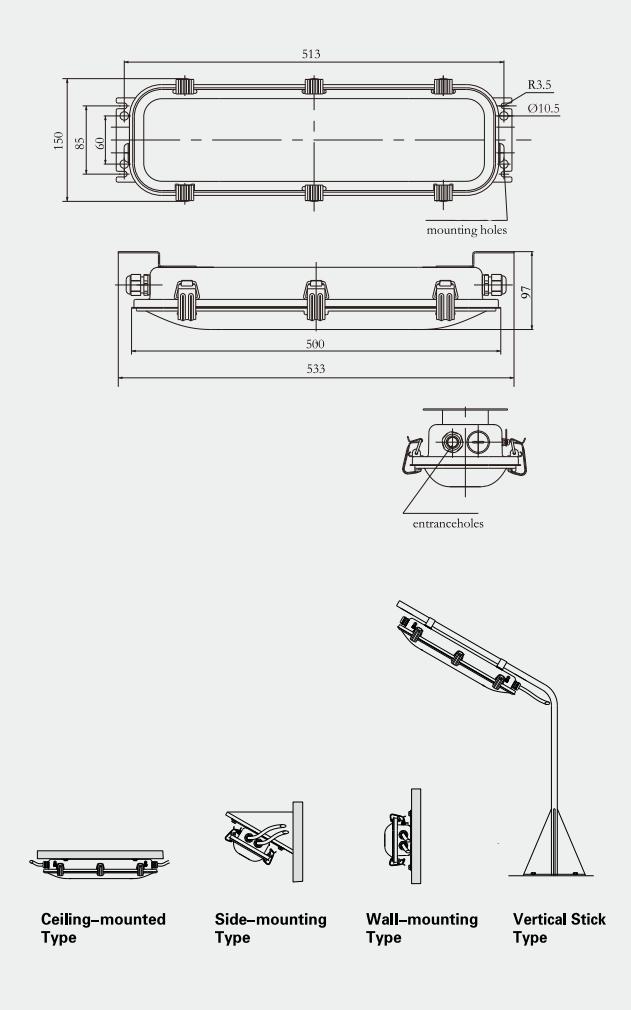

- Installation Method: Side-mounting Type, Wall-mounting Type, Vertical Stick Type, Ceiling-mounted Type.
- Application: It is suitable for all kinds of ships with dripping water, splashing water and condensate places, such as engine room and furnace room, dry cargo hold, tunnel, pipe lane, open deck and other places for lighting.
Tell us your requirements via Enquiry form, Email, WhatsApp
Share to
Detailed Specifications of HJCL16 LED Marine Pendant Light
| Type | HJCL16 | HJCL16-E | |
| Rated Voltage | AC100～240V 50/60Hz | AC100～240V 50/60Hz | DC24V |
| Power | 24W | 24W | 3W |
| Power Factor | ≥0.9 | ||
| Illuminant | LED | ||
| Illuminant Color | White | ||
| Luminous Flux(lm) | 2600 lm | 2600 lm | 300 lm |
| Color Rendering Index | Ra≥80 | ||
| Color Temperature | 5700K (Optional: 3000K, 4000K, 5000K) | ||
| Protection Class | IP66 | ||
| Cable Outside Diameter | 10mm～14mm | ||
| Installation Method | Side-mounting Type, Wall-mounting Type, Vertical Stick Type, Ceiling-mounted Type | ||
| Ambient Temperature | -30℃~+55℃ | ||
| Lamp Body Material | Steel,Stainless Steel | ||
| Lamp Shade Material | Engineering Plastics PC | ||
| Lamp Shade Color | Milky White | ||
| Weight | 2.6kg | 2.8kg | |
Yushuo HJCL16 LED Marine Pendant Features
Yushuo HJCL16 LED marine pendant light It is suitable for all kinds of ships, shipyards, port docks, storage yards and stadiums and other open place lighting.
- The product approved by the CCS ( China Classification Society ).
- Adopt seal structure, and have high waterproof performance, has compact structure and delicacy appearance.
- Adopt the import spin – type of lamp holder performance, and it is convenient to connect inside.
- Equipped compensating capacitance inside the light, also has the good effect of start.
- Conform to IEC60092-306-2009 standard and GRADE ENTRY NORMS FOR STEEL SHIPS.
